HAM Radio Frequency + ELAD SW2 SDR.
Intrasystem Copyright 2019 by Raimund Forstmeier - Padova / Italy

The Icom Receiver connection.












































The RadioFrequency Program is a professional Software dedicated to all HAM, SWL and Radio Listeners.         This Program is 100% Freeware.


Intrasystem Copyright 2019 by Raimund Forstmeier - Padova / Italy    Copyright 2017 - 2019 by Intrasystem - Raimund Forstmeier, Padova / Italy.                            View this page with Full Size.


Maybe you don't like this Web-Page design. The Intrasystem Web-Page is monitored by ClickTale.
With this design visitors are 'more reading' than playing with the mouse!
Pls. use the Arrow-Keys Down/Up for scrolling.



Remember: You can import and extract Rec from any text dBase like the ILG dBase with over 30.000 Records.



Ready for Download

Version 1.7.0 , 1.7.1 , 1.7.1.2 and successive is a complete new and revised RadioFrequency program
Several new features, LOG-dBase, Locator distance calculator and more ...









The new RadioFrequency_S program. Version 1.0.0









There are 2 different RadioFrequency programs.
- x Windows FrameWorks.4.0 x86 (must run on any Win 8, 8.1 ++++ Platform depending on your Win-update + Configuration)
- x Windows FrameWorks 3.5 x86 (fw35) (maybe the right solution x Windows 7 user)
- The zipfile is as WinRar zipfile.
Version 1.5.2
Version 1.5.3 Released on 31/DEC/2017.
Version 1.6.0 Released on 09/MARCH/2018. Pls. read the explanation file. Read the Readme.txt file.
Version 1.6.1 Released on 03/April/2018. Pls. read the Readme.Txt file.
Version 1.6.2 Released on 10/May/2018. Pls. read the Readme.Txt file.
Version 1.7.0 Released on 15/Sept/2018. Pls. read the Readme.Txt File. (Download only here)
Version 1.7.1 Released update on 30/Sept/2018.

Download only at request (avoiding WEB-Scanning) - (Freeware)
Version 1.7.1.1 Released special Edition on 09/Oct/2018
Version 1.7.1.2 Released on 13/Oct/2018 - including "copy saved Frequencies" to the LOG-View Input Fields.
Version 1.7.1.3 Released on 28/Oct/2018 - F4 ShortCut, F9 ShortCut, List3 (saved Frequencies) Delete single Items.
Version 1.7.1.3 Released on 24/Nov/2018 - Update - changed Colors x any PC Platform. Start-Error resolved x various PC.
Version 1.7.1.3 Special update on 28/Nov/2018 - Frequency Scanning procedure x ELAD SW2/DUO.
Version 1.7.1.3 Update JAN/19/2019 - pls. read the Readme.txt File x Details.
Version 1.7.1.4 Update JUNE/10/2019 - pls. read the Readme.txt File x Details.
Version 1.7.1.5 Update JUL/14/2019 - pls. read the Readme.txt File x Details.







The new RadioFrequency_S program. Version 1.0.0.0

- x Windows Standard Edition Frameworks 4+ .
- x Windows FrameWorks 3.5 x86 (fw35) (maybe the right solution x Windows 7 user)
This new 2. RadioFrequency_S program (S = small) is dedicated to the Elad FDM-S1/S2/DUO.
Including
- You create your own Main-Window using/selecting 19 different Windows/Panels.
- The Default Main-Window as is can be selected separately.

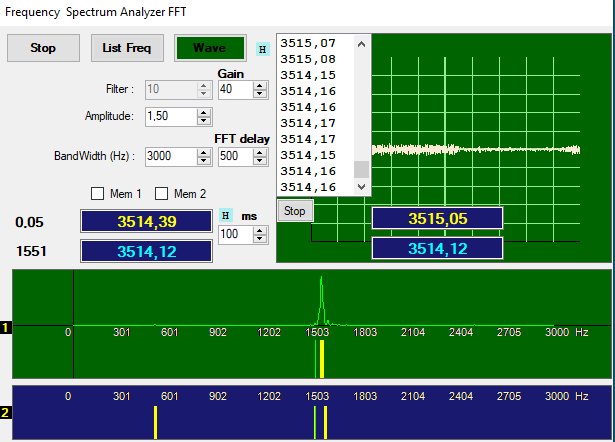

- Audio Spectrum Analyzer
- TCP connection with the Elad receivers + Import the SW2 Station Memory
- Complete Help-System
- Other procedures you are using already with RadioFrequency.
Update v. 1.0.1 released on 25/APR/2019
- Audio Recorder + ShortCut Kbd-Key Selection." "
- Copy Station Memory database SW2 to RadioFrequency_S.
- UpLoad RadioFrequency_S Station Memory to the SW2 Station Memory database."
- other Enhancements
See Details here:









You can use this Program without owning a Receiver with a Serialport connection or the ELAD SW2/DUO Receiver.
Just use it as a dB Frequency Viewer.
Add your Frequencies.
Import external dB Frequency Files using the RadioFrequency "dBase Converter".







For different Icom Radio user.

Several Icom R8500 Radio commands are valid x other Icom Radios.
Just select your Icom Radio. (near the 'Connect >' Button)

Exception is the Icom IC-735 that is reading a data length of 4 Bytes and not 5 Bytes.
If you are using this Radio pls. contact me. (raimund.forstmeier@fastwebnet.it) object must be: RadioFrequency
For a general interest the program could be adjusted for it.
In any case you can connect any Receiver using OmniRig. (OmniRig is not reading the S-Meter)
Give it a Try.




Click on [Open] load the Local dB File (Frequency.txt).

All [ H ] Labels are Help Messages

Please read the [ About ].

[ Input ] Add / Modify Frequencies to the dBase.

The local RadioFrequency dBase File = " Frequency.txt ".

[ dB ] is opening the RadioFrequency dB-Structure. (DataBase)

[ Import dBase ] is opening the dB Converter environment. Import external dBase Structures.

With [ Vol ] you can set the PC-Speaker Volume.

On the Bottom you find the search Frequencies and Data.         [Save to Memory]          [Delete Item/Record]          [Delete Memory File].

The Search feature is searching on search > on search down to the smallest detail.

The Basic View.







[ Input ] Add Record Frequencies to the Local dBase (Frequency.txt File). (add transmission Mode)
Trans-Mode (CW, AM, FM ecc.) is sent to the Receiver together with the Frequency.

Modify a dB-Record - open [ Input ] - click on a Record in List No 1 - modify and [Save]

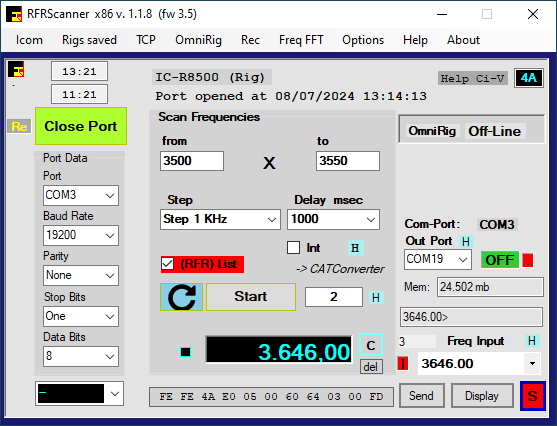

[Connect to your Icom Radio] The Serial Port Comunication View - RadioFrequency to Receiver.

Click on the [ Connect > ] button (open/close).
Open the Com Port. [ Open Port ]
Open the [ H ]elp near the [ X ]-close Button.
Scanning Frequencies
From Freq to Freq - Step option - Delay option
Scan the actual List-Frequencies - List 1, 2, 3 - Main dB-List, Search-List, Saved-Radio-Stations-List
Interrupt scanning with a Frequency-Message > Listen to any Station as long as you want. (until closing Message)
Repeat Scanning x times
Precise S-Meter with ' | ' x S 5,7,9, +10, +20
On top the actual Frequency is shown.
On top the Mode (CW, FM ...) selected is shown. (as from version 1.5.3)
On top UTC-Time is shown. (as from version 1.5.3)
On the Connection-View you can select the 'Reading speed' in milliseconds. Default is 50ms. (version 1.5.3)
Use the [Arrow Keys] + [Enter] Key > send Frequency + Mode to the Receiver.
L-Click and R-Click > select different action.
Manual Frequency Input is possible.







SW2 + TCP-Connection + Locator Distance Calculator







Sizing RadioFrequency. Important connection buttons are visible on Top. RFR is re-sizing in automatic when you open and close a View.







The "Yellow" Button is opening the "Connection Status" View.
New: Reading the Elad SW2/DUO Device Configuration. SW2-Menu > Advanced > [Device Configuration]







With the SW2/DUO "TCP" connection View you can test all SW2 commands. [Stop] TCP > open the [ ? ]Help x details.

The TCP Connection View. [ TCP ]





The Virtual Port Emulator VSPE









The [ Import dBase ] Environment

Any TextFile + csv dBase-Structure can be converted to the dB-Structure RadioFrequency is using.
The dBase Structure is a normal dB-text-Structure based on a " by Position " structure without Delimiters like the " , " comma.
The example below is reading the "Test Record" without delimiters. Reading " by Position ".
We copy a Field "from digit to digit" and assign the Field-Data to a Local Field. (8 Fields in total)
The first Field is always the "Frequency".
[ Test ] is translating only the " Test Record ". If the result is OK you [Translate] the whole external dBase.
You can save all Data/parameters with [Save Session] and Re-Open with [Load Session] x a automatic run.
There is a complete explanation file. Click on the 'bigger' [ H ]Label and open the Explanation.











Convert a text-dB / csv using a Delimiter. This Test-Record is using the " _ " underscore char.
As the Fields are the same as RadioFrequency is using the Local Field N° attribution is straightforward. 1..8.









RadioFrequency v. 1.7.1 Standard Edition & FrameWorks 3.5 - Print Log-File (LandScape)

New > Keyboard Shortcuts. Click on the [ ? ]Label Top-Left-Corner. [ / ]-Full size.



















Get the ILGRadio Database.
The most comprehensive short wave database 2 - 30 Mhz with more than 35000 up-to-date entries.

RadioFrequency can import this short wave database using the included dBase-Converter with RadioFrequency.











Check your installed FrameWorks. Maybe you need a update.

Download the small "ReadFrameWorks" program. >>>>
Download (Winrar.zip)









RadioFrequency Download

Version 1.7.1.4 update 10/June/2019
         For Icom Radios (other) and the ELAD SW2/S1, S2, DUO.

Pls. read the Readme.txt File x Details.

The TCP View is now including:
- Upload Frequency dBase List 1, 2, 3 to the Elad SW2 Station Memoy
      [ UpLoad ]
- Download the Elad SW2 Station Memory - Import to List 3 [Saved Radio Stations]
      [ dBase Ch1 ]
      (is overwriting the List 3 Records)
- The [ Search List ] List 2 can be copied to List 3 (appended) "Saved Radio Stations".
      You can download into List 3, then add List 1 Records (via search) and again "UpLoad".
- There is a new "Recorder" Button. Record and Play *.wav Files.
      Recording, Pause, resume recording can be done with the ShortCut Key "ESCAPE" or different.
      - You define your ShortCut Key for activating the Recorder without opening the Recorder-View.
      - The Recorder-View is registering the last Screen-Position. (always Stay-On Top)
Pls. read the Help explanation > F3 open the Recorder View > Options > General Help
- The LOG-View ( F8 )
      - the saved LOG-Frequencies [ Input Saved Frequencies ] can be deleted all together.
           Delete the Log-Frequencies List (Saved with " F9 ")
           This frequency Records are also visible with List 3 [Saved Radio Frequencies] and deleted.
           In List 3 this Records are evidenced with "Saved Log".
           Saved Log Frequencies are used for adding later on to the LOG-dBase. The Comment text is important.
           Just try it and you get used to it.
- Several smaller enhancements.
- The next update is including the special Audio-Analyzer. Similar to the RadioFrequency_S program.

Version 1.7.1.5 update 14/Jul/2019
- Including the Audio Analyzer


Pls. take note that RadioFrequency is connecting to any Receiver / Transceiver using OmniRig.


This Edition (Freeware) can't be downloaded without request. (avoiding WEB-Scanning)
Send a e-mail to: raimund.forstmeier@fastwebnet.it
     Subject must be: RadioFrequency Download




RadioFrequency Download Standard Edition, Frameworks 4+ Version 1.7.1.5 - JUL/14/2019

>>>>
Download (Winrar.zip)





Should you not be able to extract the files from the .zip please try using WinRAR or the like.
Should you experience difficulties running the Standard Edition, download and try the version compiled for FrameWorks 3.5.




RadioFrequency Download x FrameWorks 3.5 Version 1.7.1.5 (fw35) - JUL/14/2019

>>>>
Download (Winrar.zip)







The new RadioFrequency_S Edition (Freeware) can't be downloaded without request. (avoiding WEB-Scanning)
Send a e-mail to: raimund.forstmeier@fastwebnet.it
Your e-mail address must be the same you used x downloading the RadioFrequency program.
This program is only x RadioFrequency user. (RadioFrequency must be downloaded first)
     Subject must be: RadioFrequency_S Download

The new RadioFrequency_S program. Version 1.0.1


Standard Edition is only running with Frameworks 4+ .
This new 2. RadioFrequency_S program (S = small) is dedicated to the Elad FDM-S1/S2/DUO.
Including
- You create your own Main-Window using/selecting 19 different Windows/Panels.
- The Default Main-Window as is can be selected separately.
- Audio Spectrum Analyzer
- TCP connection with the Elad receivers + Import the SW2 Station Memory
- Complete Help-System dated.
Update v. 1.0.1
- Audio Recorder + ShortCut Kbd-Key Selection." "
- Copy Station Memory database SW2 to RadioFrequency_S.
- UpLoad RadioFrequency_S Station Memory to the SW2 Station Memory database."
- other Enhancements
See Details here:



RadioFrequency_S Download x FrameWorks 4+ only - Version 1.0.1. APR/25/2019

>>>>
Download (Winrar.zip)




Should you not be able to extract the files from the .zip please try using WinRAR or the like.
Should you experience difficulties running the Standard Edition, download and try the version compiled for FrameWorks 3.5.


RadioFrequency_S Download x FrameWorks 3.5 - Version 1.0.0.0 FEB/17/2019

Download is suspended.

>>>>
SUSPENDED!













Intrasystem Copyright 2019 by Raimund Forstmeier - Padova / Italy

RadioFrequency - version 1.7.1.5 (at request)
Revision: 14/JUL/2019
Intrasystem Copyright 2019 by Raimund Forstmeier - Padova / Italy   Copyright 2017-2019 by Intrasystem - Raimund Forstmeier, Padova / Italy.
